Empty Gelatin Capsules - Size #5 Clear

Starting from US$9.99
Only %1 left
SKU
5056206109912
  • Derived from Completely Natural Sources - Our gelatin capsules come from natural bovine sources
  • Bulk Quantities Available - We provide bulk amounts of capsules. Fill out the form below for a competitive quote on bulk quantities of Empty Gelatin Capsules Size #5 Clear
  • Packaged in the United States - We proudly package our capsule in the USA. Providing the highest quality capsules possible.

Get a Bulk Capsule Quote

If you require larger quantities than what we offer on the website then please fill out the form below and we will provide you with our most competitive quote. Please note bulk quantity prices start at quantities over 1 million capsules. If you require less than this it is quickest to make payment through the website.

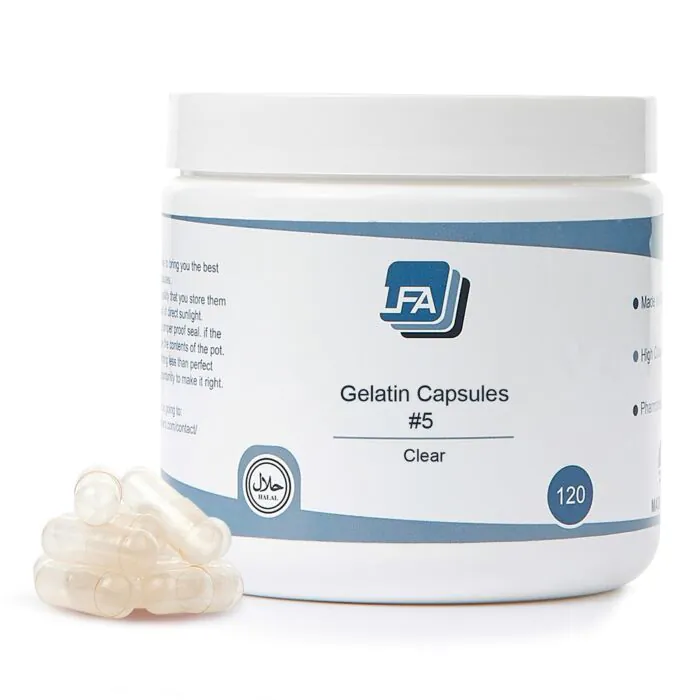

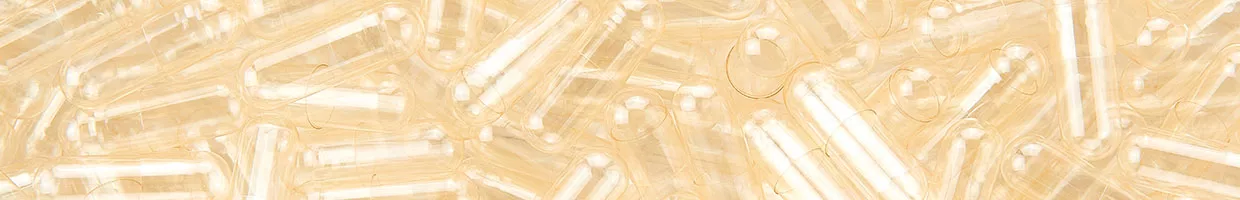

These are two-piece clear empty hard gelatin capsules in size #5. Packaged in the United States of America these capsules are the highest possible quality product. We supply them in a plastic pots to keep them protected whilst shipping and in between being used.

Empty Capsules are a great way to create your own custom supplement formulations at home or for creating a new line of products. Whatever your need, our capsules will allow you to quickly combine powders into formulas and dosages exactly as needed.

We offer gelatin, hpmc and pullulan capsules in all standard sizes and a range of colors. These capsules are size5. If you are unsure which size is best for you then checkout our capsule size guide for some help.

We also offer all of our capsule range in wholesale quantities. Please get in contact for more details.

Benefits of Size #5 Gelatin Capsules

Require Bulk Quantities of Size #5 Gelatin Capsules?

We provide all of our capsules in bulk quantities. If you would like to place a larger order of clear empty hard gelatin capsules in size #5 or any of our other hard caps then please click the "Get Bulk Capsules Quote" below. Fill out your details including the delivery address and our team will quickly provide you with the most competitive possible quote for bulk quantities.

We stock bulk quantities of all of our different types of capsules. So if you require larger amounts of gelatin, hpmc or pullulan any of our standard range of colors then contact us now. Size #5 come in boxes of 350,000 so if you let us know the amount you require and we will create a quote to the closest amount of boxes and get you producing as soon as possible.

The most common size capsule used for food supplements are 00 capsules. However there are a total of 10 standardised sizes. We stock the most common 8 sizes but do not stock as standard #00E and #0E which are "extended" versions of #00 and #0. We can source these by request.


Capsule Size Chart

Empty Capsule Size
Capsule Size 000 00E 00 0E 0 1 2 3 4 5
Empty Capsule Weight (Gelatin)
Average Weight (mg) 158 143 123 107 99 78 61 48 38 28
Tolerance ±10 ±10 ±7 ±7 ±6 ±5 ±4 ±3 ±3 ±2
Empty Capsule Weight (Vegetarian)
Average Weight (mg) 163 152 136 107 105 79 63 50 40 30
Tolerance ±10 ±10 ±7 ±7 ±6 ±5 ±4 ±3 ±3 ±2
Empty Capsule Volume Capacity (ml)
Capacity 1.37 1.00 0.90 0.78 0.68 0.48 0.36 0.27 0.20 0.13
Empty Capsule Weight Capacity by Formulation Density (mg)
Formulation Density
0.6 g/ml 822 600 540 468 408 288 216 162 120 78
0.8 g/ml 1096 800 720 624 544 384 288 216 160 104
1.0 g/ml 1370 1000 900 780 680 480 360 270 200 130
1.2 g/ml 1644 1200 1080 936 816 576 432 324 240 156
Empty Capsule Overall Closed Length
mm 26.1 25.3 23.4 23.5 21.6 19.4 17.6 15.7 14.3 11.1
Tolerance (mm) ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.4
Inches 1.029 0.906 0.921 0.909 0.85 0.764 0.693 0.618 0.563 0.437
Tolerance (inches) ±0.012 ±0.012 ±0.012 ±0.012 ±0.012 ±0.012 ±0.012 ±0.012 ±0.012 ±0.016
Empty Capsule Individual Lengths (cap)
Cap (mm) 12.95 12.95 11.80 11.68 10.85 9.85 8.80 8.00 7.20 6.20
Tolerance (mm) ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.29
Cap (inches) 0.510 0.510 0.464 0.460 0.427 0.388 0.346 0.315 0.283 0.244
Tolerance (inches) ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.012
Empty Capsule Individual Lengths (body)
Body (mm) 22.20 22.20 20.22 20.19 18.35 16.40 15.15 13.45 12.10 9.30
Tolerance (mm) ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.35 ±0.29
Body (inches) 0.879 0.879 0.796 0.795 0.722 0.645 0.596 0.529 0.476 0.366
Tolerance (inches) ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.014 ±0.012
Empty Capsule External Diameter
Cap (mm) 9.91 8.58 8.56 7.65 7.64 6.96 6.39 5.85 5.33 4.91
Cap (inches) 0.390 0.338 0.337 0.301 0.301 0.274 0.252 0.230 0.210 0.193
Body (mm) 9.55 8.25 8.23 7.36 7.35 6.63 6.12 5.60 5.08 4.68
Body (inches) 0.376 0.322 0.289 0.29
Empty Capsule Quantity Per Case
Capsules per box 50,000 65,000 75,000 90,000 100,000 125,000 175,000 200,000 250,000 350,000


Standard Empty Capsules Box Sizes

We offer different quantities of packet sizes from 1,000, 5,000 and 10,000 as well as in wholesale quantities.

When buying wholesale quantities each type of capsules whether Gelatin, HPMC or Vegetable come in 1 standard box size. The quantity of capsules in each box changes depending on the size as the volume of the box stays the same. We have created a table below to show the dimensions of the box as well as the quantity of capsules in each.

Units Height (H) mm/inches Depth (D) mm/inches Width (W) mm/inches
Metric (mm) 730 mm 397 mm 600 mm
Inches 28 3/4" 15 5/8" 23 5/8"
Capsule Size Quantity In Standard Box
#000 50,000
#00 70,000
#0 100,000
#1 125,000
#2 175,000
#3 225,000
#4 300,000
#5 350,000
Standard box size for hard caps
Specification Empty Gelatin Capsules - Size #5 Clear
Net Weight (kg)0.08
